• ALC+ (All-Laser-Clean) HANDHELD PORTABLE PULSED/QCW/CW FIBER LASER CLEANING MACHINE
ALC+ (All-Laser-Clean) HANDHELD PORTABLE PULSED/QCW/CW FIBER LASER CLEANING MACHINE

———

Metal surface rust removal, Paint cleaning, Oil stain, contaminant cleaning, Coating surface cleaning, Welding/Coating surface pre-treatment, Stone figure surface dust & attachment cleaning, Plastic mould residues cleaning

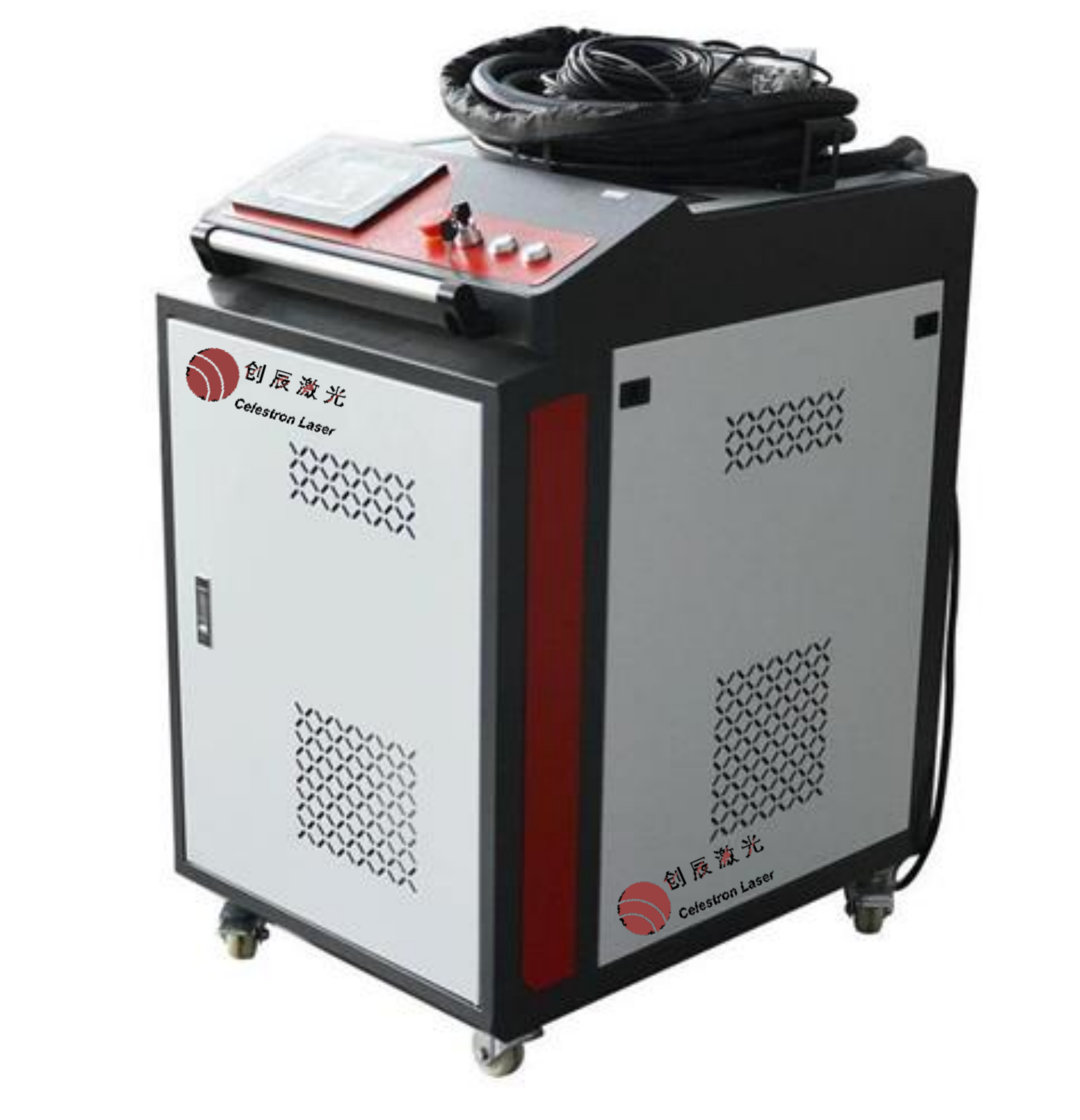

ALC+ (All-Laser-Clean) Series Handheld Laser Cleaning Machine





Handheld Laser Cleaning Machine Features & Advantages

l  High power fiber laser cleaning.

l  Non-contact cleaning, no damage to workpiece

l  Precision positioning, selective cleaning, desired cleaning area can be applied to the workpiece.

l  No need chemical detergent, no consumable. Safe & environment-friendly.

l  Easy to operate, either portable or equipped with robot for automatic cleaning.

l  High cleaning efficiency, time-saving.


Applications

l  Metal surface rust removal

l  Paint cleaning

l  Oil stain, contaminant cleaning

l  Coating surface cleaning

l  Welding/Coating surface pre-treatment.

l  Stone figure surface dust & attachment cleaning.

l  Plastic mould residues cleaning





Technical Data


No.

Items

Technical Parameter

1

Model

HLC-1000W

HLC-1500W

HLC-2000W

2

Laser Power

1000W

1500W

2000W

3

Working Mode

Continuous

4

Wavelength

1080nm

5

Fiber Length

10m

6

Cleaning Head Weight

0.8KG

7

Scan Width (mm)

0-50mm

8

Cleaning efficiency:

paint/floating rust 20um

45m2/h

67.5m2/h

90m2/h

9

Cleaning efficiency:

20um greasy dirt (m2/h)

62m2/h

90m2/h

120m2/h

10

Cleaning efficiency:

titanium alloy oxide film/stainless steel weld seam (m2/h)

28m2/h

40.5m2/h

55m2/h

11

Cooling

Water-cooling

12

Power Supply

220V-50/60HZ

380V-50/60HZ

380V-50/60HZ

13

Total Power

5KW

8KW

10KW

14

Machine Dimension (mm)

830X560X1050

830X560X1050mm

1600X1200X1950mm

15

Machin Weight

160KG

200KG

240KG




Contraswith Other Cleaning Method

Item

Chemical Cleaning

Mechanical Polishing

Dry Ice Cleaning

Ultrasonic Cleaning

Laser Cleaning

Cleaning Method

Chemical cleaning agent

Mechanical / Sandpaper, contact

Dry ice, non-contact

Cleaning agent, contact type

Laser removal, non-contact

Workpiece Damage

Damaged

Damaged

No damage

No damage

No damage

Cleaning Efficiency

Low

Low

Medium

Medium

High

Cleaning Performance

Common, uneven

Common, uneven

Excellent, uneven

Excellent, small clean area

Excellent, high cleanliness

Cleaning Accuracy

Uncontrollable, poor accuracy

Uncontrollable, average accuracy

Uncontrollable, poor accuracy

Not able to be cleaning within a specific area

Precision and controllable, high accuracy

Safety/Environmental Protection

Serious chemical pollution

Polluted environment

No pollution

No pollution

No pollution

Manual Operation

The process is complex and requires high ability for operators, and safeguard procedures are required

Strong physical

strength, need

safety

protection

measures

Simple

operation,

handheld or

automated

Simple

operation, but

need to

manually add

consumables

Simple

operation,

handheld or

integrated

automation

Consumables

Chemical cleaning

agent

Sandpaper,

grinding wheel,

whetstone, etc.

Dry ice

Dedicated

cleaning fluid

Only need power

supply

Cost Input

Low initial

investment, high

cost of

consumables

High initial

investment and

high labor cost

for

consumables

Medium

investment for

the first time,

high cost of

consumables

Low initial

investment,

medium cost of

consumables

High initial

investment, no

consumables,

low maintenance

cost
